What is hydro vacuum excavation and how does it work?

Hydro vacuum excavation uses a high-pressure water wand to break up soil and a powerful vacuum to extract spoil into a sealed on-board tank. Because no mechanical tool touches the ground, it eliminates the risk of striking underground pipes, cables, fibre or gas lines. The HydroMaster 2000 uses a full vacuum system - not air-based - meaning the standpipe can be fully submerged and still extracts efficiently in very wet or clay-heavy ground where air-based hydrovacs lose performance. The 270-degree remote-controlled boom lets one operator work safely without a second person.

What is the difference between the HydroMaster 2000 and a conventional digger?

A digger uses a mechanical bucket that cannot work safely near underground services without risking a strike on pipes, cables or fibre. The HydroMaster 2000 uses high-pressure water and vacuum to expose and move soil precisely, with no mechanical ground contact. It is quieter, creates less ground disturbance, and fits compact job sites and residential driveways where a large excavator cannot go. See also our Insights article: Hydro Vacuum Excavator vs. Digger

What can the HydroMaster 2000 excavate?

Most soil types including clay, sand, loam, compacted aggregate and topsoil. Its turbo cutter nozzle cuts through compacted material effectively. The full vacuum system works in both dry and wet conditions. Common uses: potholing around buried utilities, trench excavation near services, drainage and stormwater work, foundation exposure, planting in confined spaces, and vac dig in urban environments.

Is the HydroMaster 2000 reliant on a specific truck?

No. It is skid-mounted and moves between any suitable flat deck truck - no truck-specific fitment required. It fits a compact class 2 four-wheel truck (8,000 kg payload), ideal for compact urban job sites and residential driveways where larger trucks would damage kerbs, driveways or soft ground. If your truck is off the road for servicing, the HydroMaster simply shifts to another truck with no downtime.

How big is the spoil tank on the HydroMaster 2000?

The HydroMaster 2000 has a 2 m3 (2,000L) vacuum spoil tank. A sight-glass makes it easy to see when approaching capacity, and shut-off valves prevent overfill damage. When full, the spoil can be emptied easily using the tank’s hydraulically operated controls.

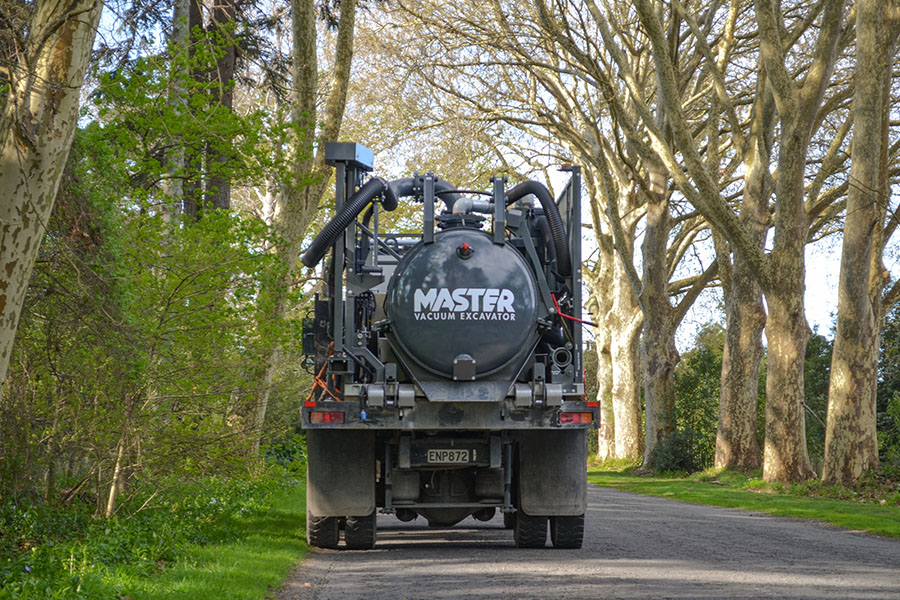

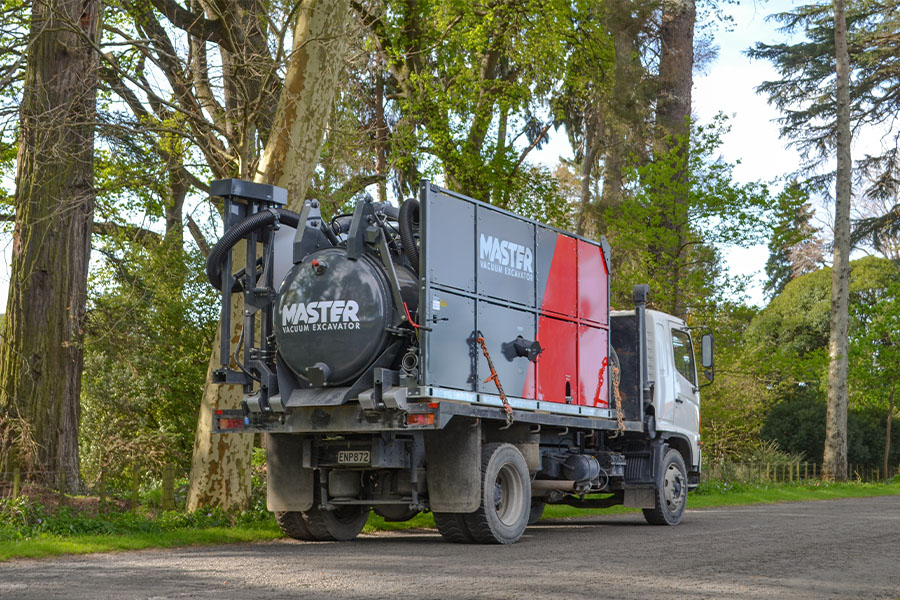

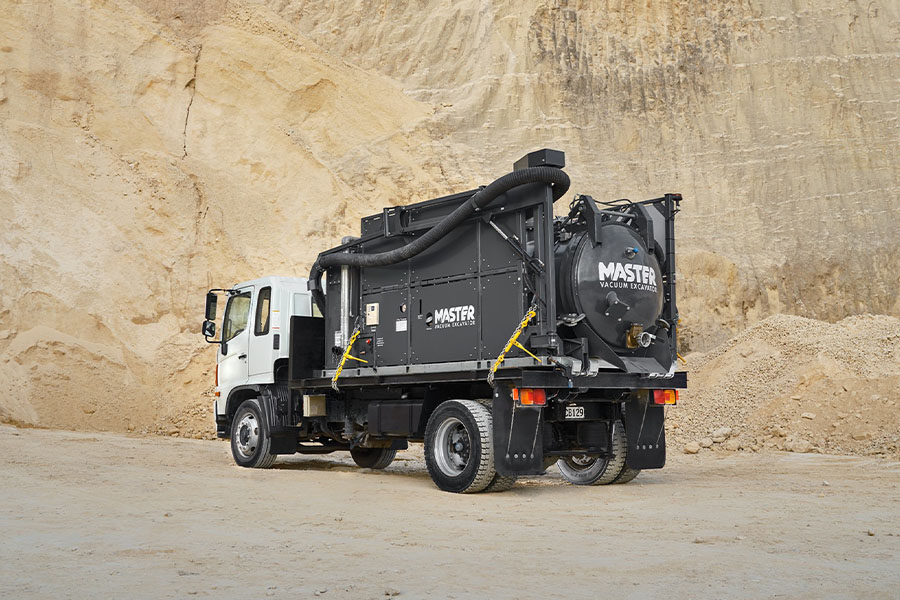

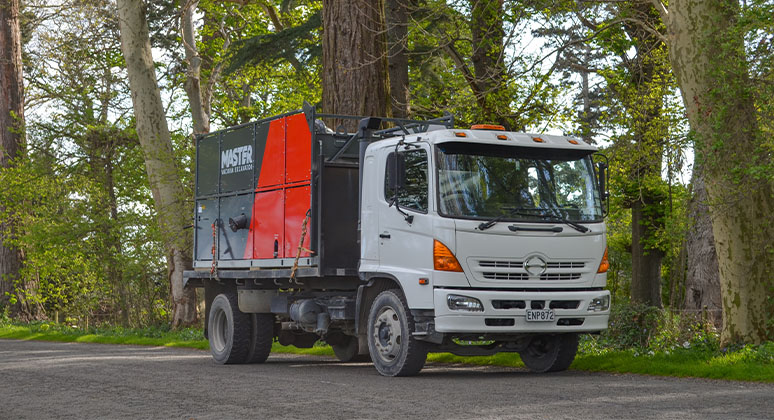

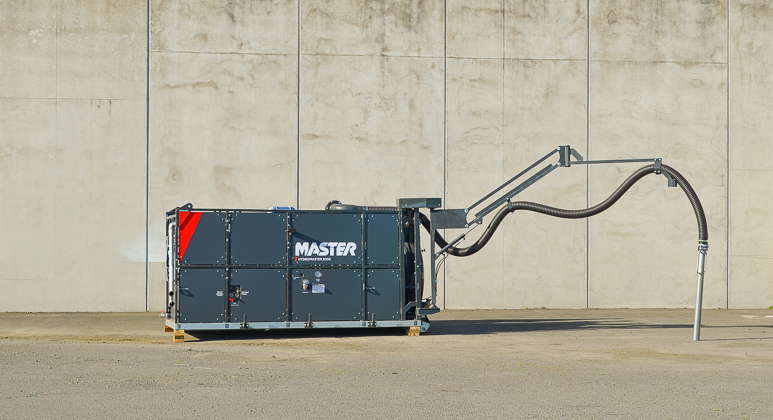

HydroMaster 2000 NZ - Vacuum Excavator for Sale

Name: HydroMaster 2000
Brand: Master Machinery
SKU: MM-HYDROMASTER-2000
Availability: InStock

Hydro Vacuum Excavation: Safer, Faster Digging for NZ Contractors

The HydroMaster 2000 isn’t just a different excavator, it’s a different way to excavate. Unlike other hydro vac machines that rely on airflow to move material, the HydroMaster 2000 features a full vacuum system that works in every situation – even very wet conditions.

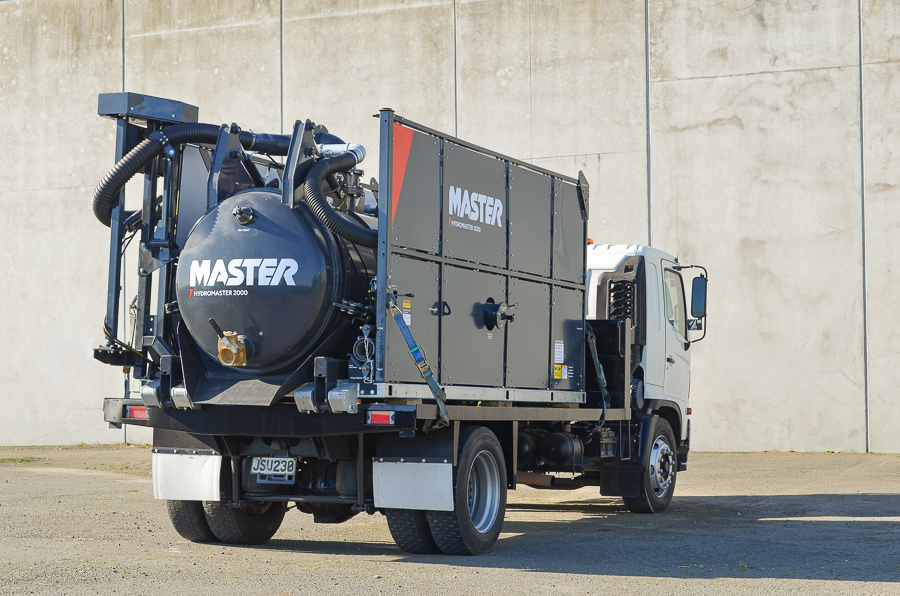

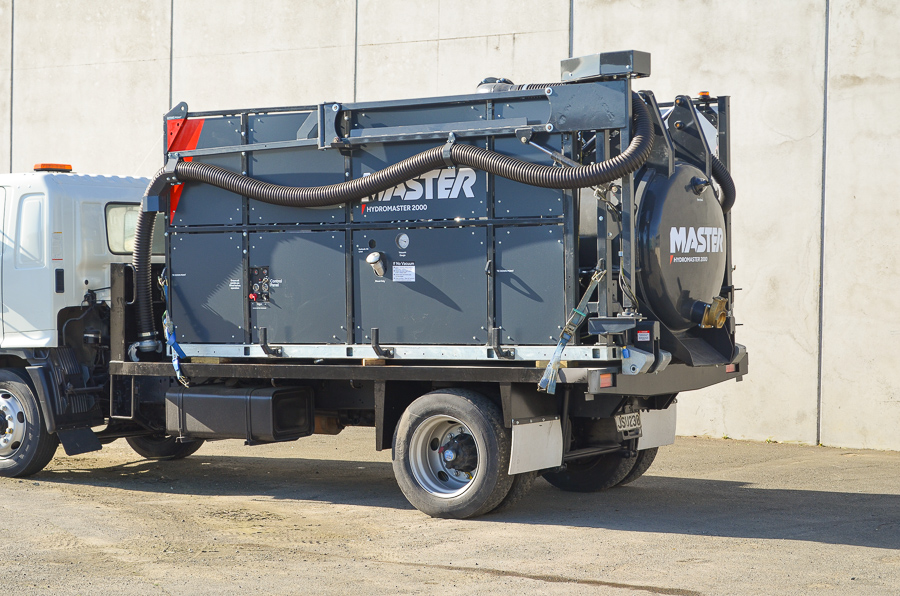

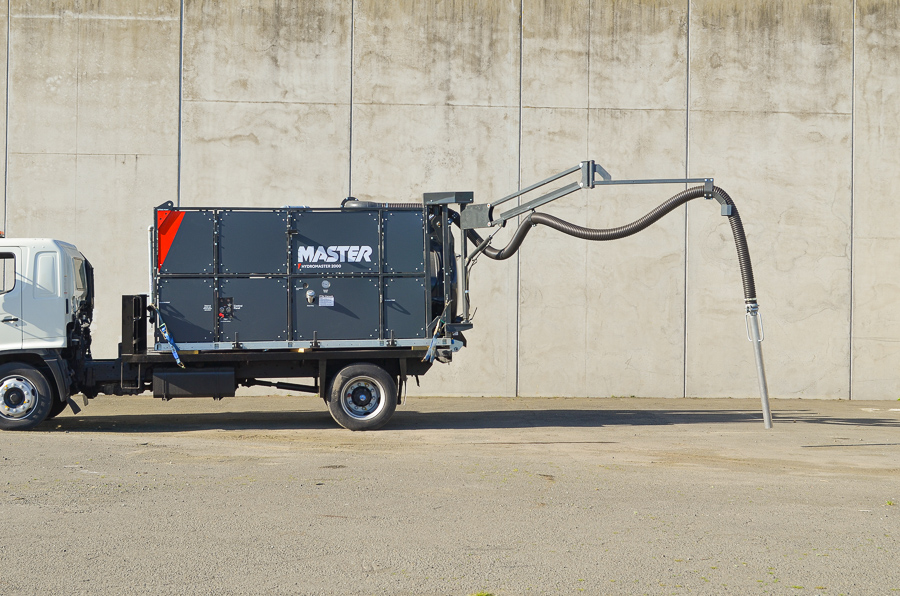

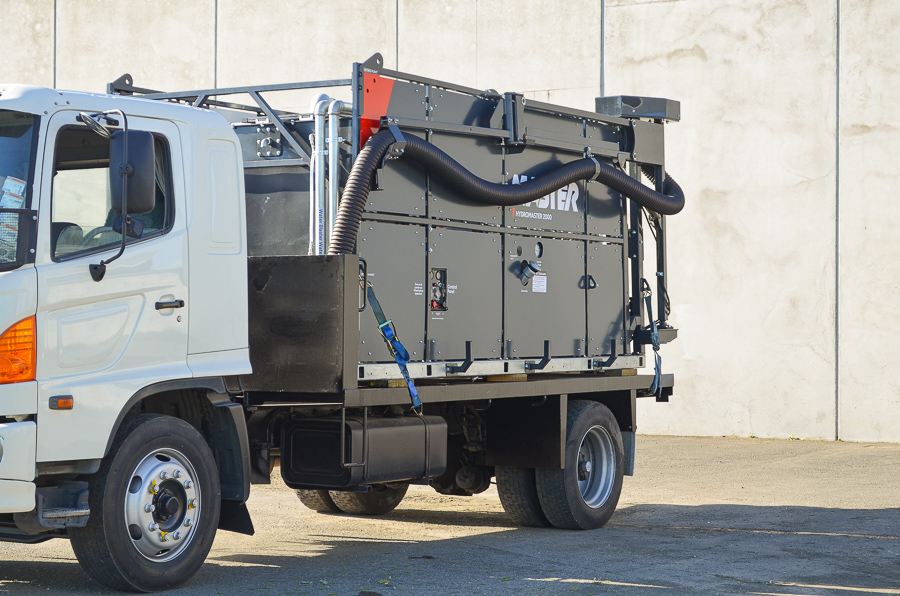

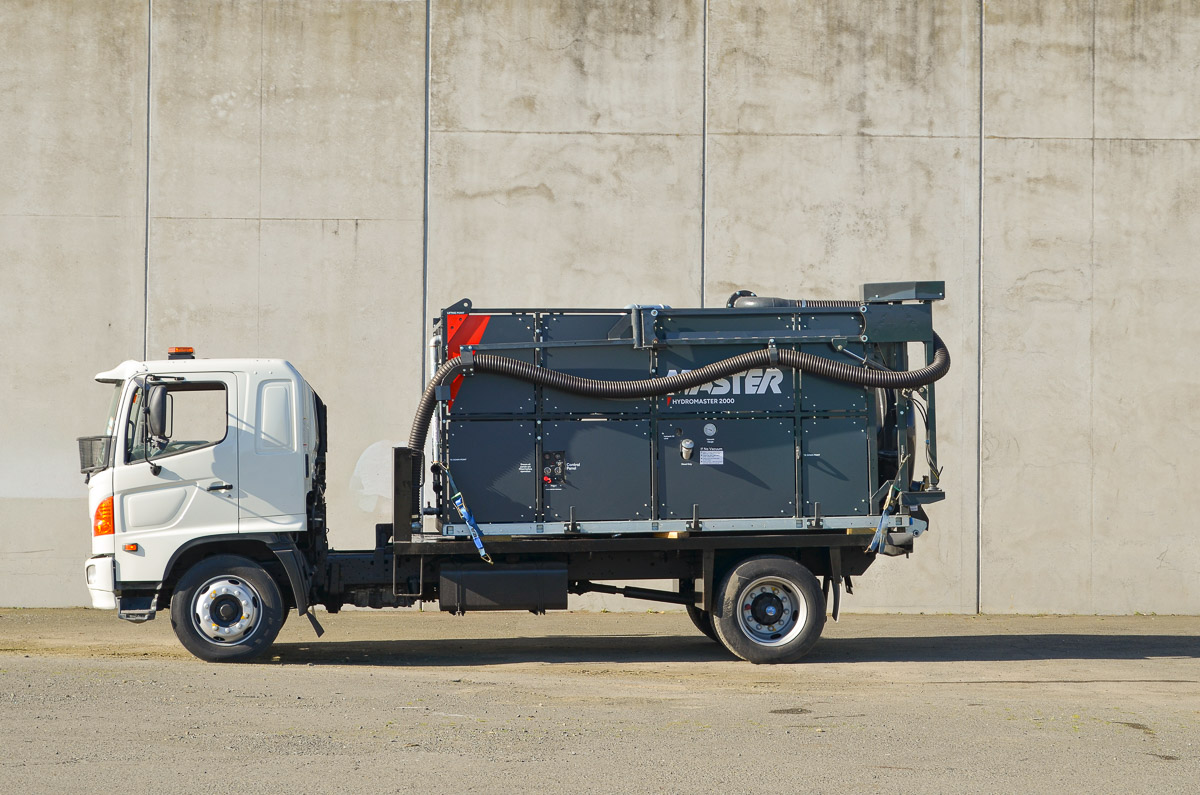

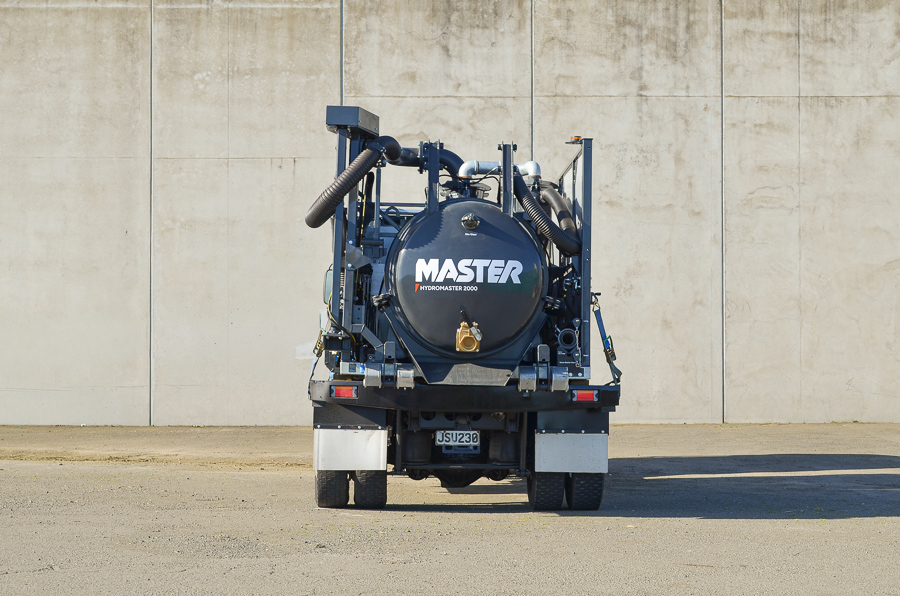

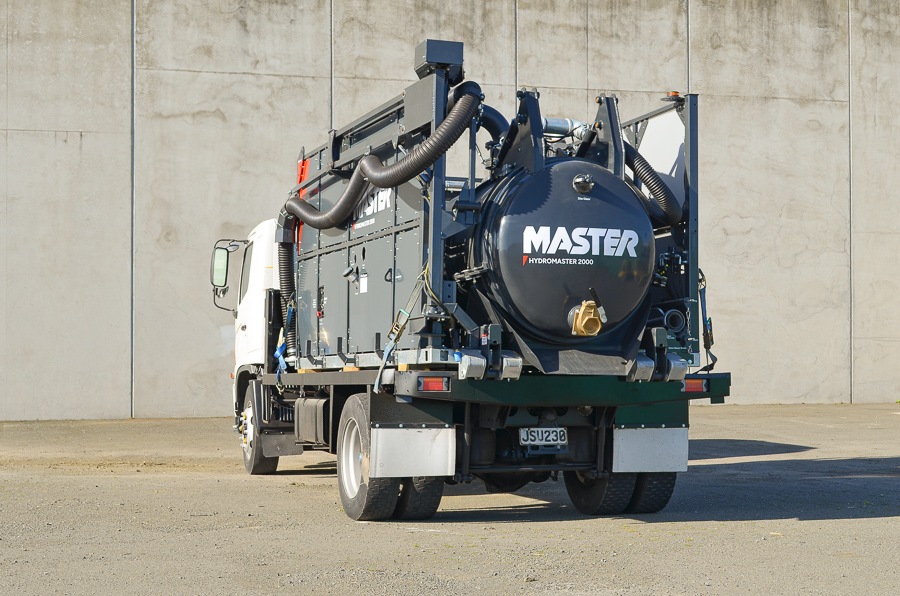

Mounted on a skid frame, the HydroMaster 2000 isn’t reliant on any particular truck either. This makes it more reliable as it removes truck failure and other interdependencies which can otherwise impact its use. You simply move the machine from one truck to another. No downtime and no delays.

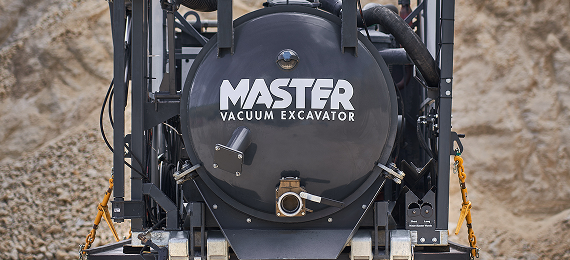

The large vacuum chamber securely collects spoils in the 2000L tank, which can then be safely transported to a suitable site for disposal. We even added a sight-glass on the spoils tank to make it easy to see you’re getting close to capacity, with shut-off valves to prevent damage from overfilling. And for those hard-to-reach areas, we’ve added a 2 metre hose extension.

Included is a 1000L water tank for the inbuilt water blaster, which can be easily refilled with camlock fittings for connecting to hoses or fire hydrants. Two different wand lengths are included as standard, each fitted with a turbo cutter nozzle for cutting through compacted metal, topsoil and everything else.

Finally, we’ve made everything safe and easy for a single worker to use the HydroMaster 2000. There’s a beacon for added visibility and the same remote control that makes operating it a breeze, as well as a big E-Stop button in case of an emergency.

Feature	HydroMaster 1000	HydroMaster 2000
Format	Towable trailer (hydrovac trailer)	Skid frame (mounted on flat deck or tipper truck)
Vacuum tank spoils capacity	1 m³ (1,000 L)	2 m³ (2,000 L)
Water blaster tank capacity	250 L	1,000 L (1 m³)
Suction hose size	3"	5"
Standpipe length	1.0 m	1.5 m
Vacuum pump type	Liquid Ring Pump (Full Vacuum System)	Liquid Ring Pump (Full Vacuum System)
Water blaster wand lengths	1,200 and 2,000 mm	1,200 and 2,000 mm
High pressure water nozzle	Turbo nozzle	Turbo nozzle
Boom rotation	240 degrees (telescopic, spring-assisted)	270 degrees (remote-controlled)
Controls	Electric	Electric, remote control
Remote control	Not included as standard	Included as standard
Emergency stop	E-Stop button included	E-Stop button included

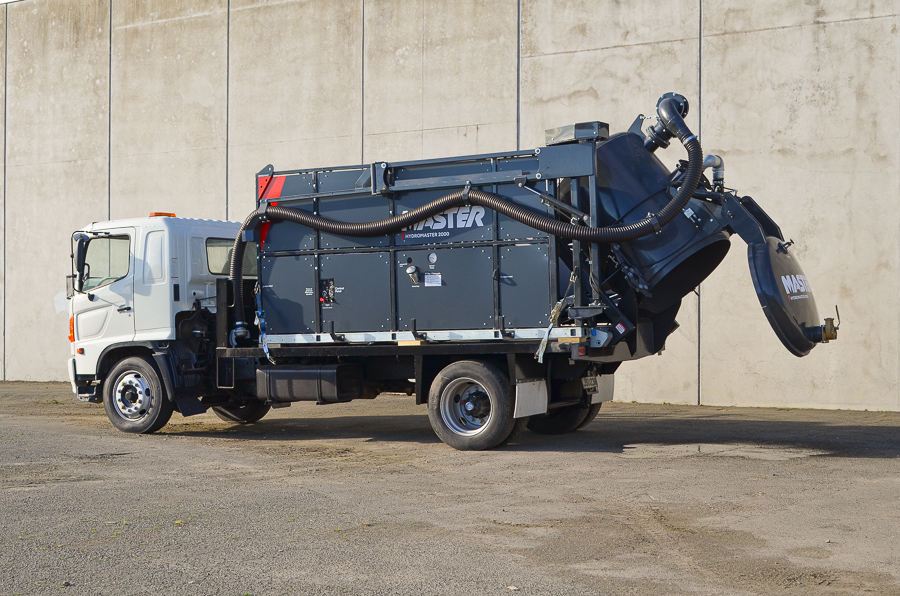

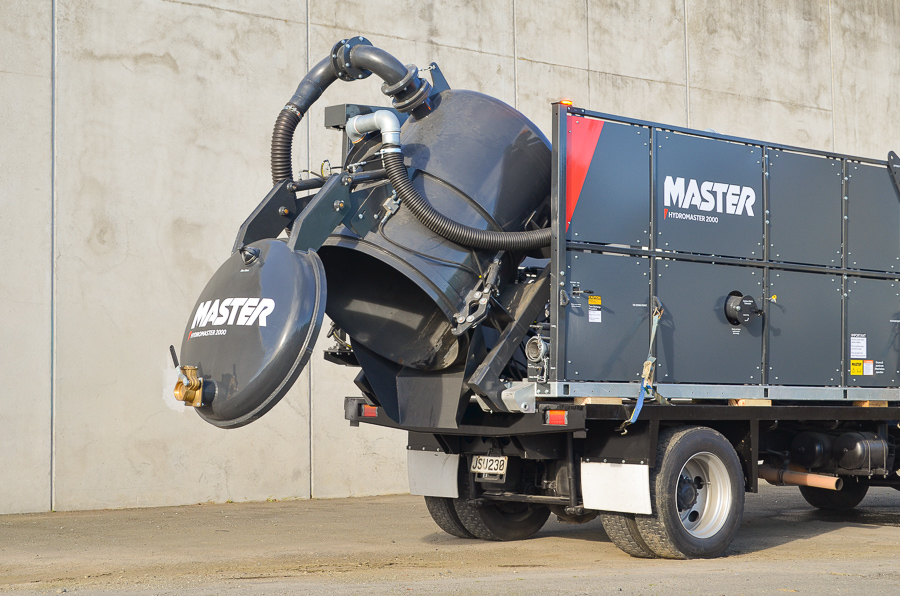

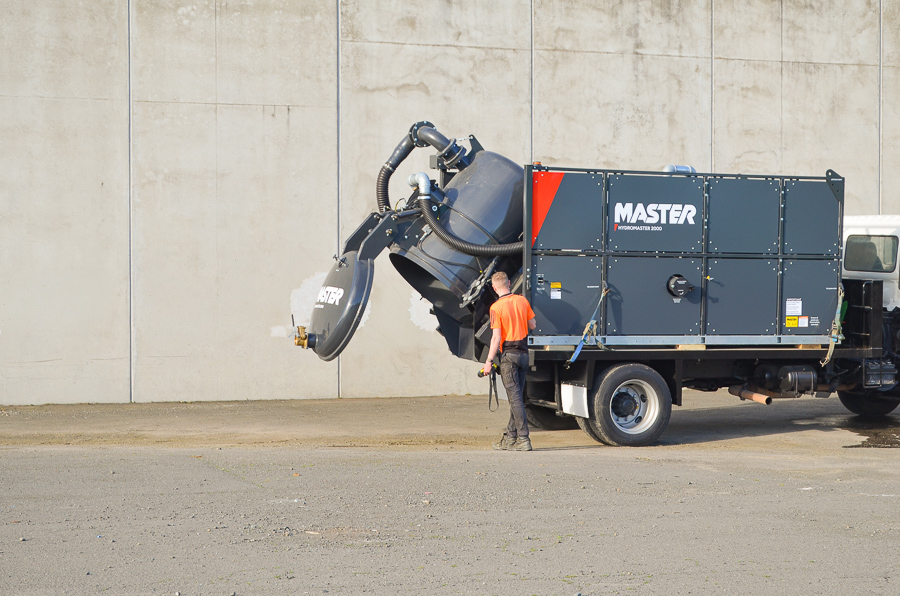

Rear door system	LatchMaster hydraulic over-centre latch	LatchMaster hydraulic over-centre latch
Sight glass on spoils tank	Included (monitors fill level)	Included (monitors fill level)
Hose extensions	Self-clearing male couplers on each end	2 m hose extension included
Flashing beacon	Included as standard	Included as standard
Tow hitch coupling	1-7/8"	Not applicable (skid frame, not towable)
Wheel size	15"	Not applicable
Trailer rated capacity	3,500 kg	Not applicable
Dimensions (L x W x H)	4.5 x 2.0 x 2.1 m	4.6 x 2.2 x 2.15 m
Tare weight (empty)	2,410 kg	3,000 kg
Truck requirement	Towable by any vehicle with min 3.500 kg towing capacity (no H2 licence needed)	Flat deck or tipper truck with 8,000 kg+ payload capacity (class 2 four-wheel truck)
Loading and transport	Towed on 1-7/8" hitch coupling; moves between sites without a dedicated truck	Skid-mounted; shifts between any suitable flat deck truck with no fitment required
Typical applications	Potholing, trench excavation near services, drainage, residential driveways, tight access urban sites, planting in confined spaces	Potholing, trench excavation, drainage and stormwater, foundation exposure, larger urban sites, wet and clay-heavy ground conditions

Feature

HydroMaster 1000

HydroMaster 2000

Format

Towable trailer (hydrovac trailer)

Skid frame (mounted on flat deck or tipper truck)

Vacuum tank spoils capacity

1 m³ (1,000 L)

2 m³ (2,000 L)

Water blaster tank capacity

250 L

1,000 L (1 m³)

Suction hose size

Standpipe length

1.0 m

1.5 m

Vacuum pump type

Liquid Ring Pump (Full Vacuum System)

Water blaster wand lengths

1,200 and 2,000 mm

High pressure water nozzle

Turbo nozzle

Boom rotation

240 degrees (telescopic, spring-assisted)

270 degrees (remote-controlled)

Controls

Electric

Electric, remote control

Remote control

Not included as standard

Included as standard

Emergency stop

E-Stop button included

Rear door system

LatchMaster hydraulic over-centre latch

Sight glass on spoils tank

Included (monitors fill level)

Hose extensions

Self-clearing male couplers on each end

2 m hose extension included

Flashing beacon

Included as standard

Tow hitch coupling

1-7/8"

Not applicable (skid frame, not towable)

Wheel size

15"

Not applicable

Trailer rated capacity

3,500 kg

Not applicable

Dimensions (L x W x H)

4.5 x 2.0 x 2.1 m

4.6 x 2.2 x 2.15 m

Tare weight (empty)

2,410 kg

3,000 kg

Truck requirement

Towable by any vehicle with min 3.500 kg towing capacity (no H2 licence needed)

Flat deck or tipper truck with 8,000 kg+ payload capacity (class 2 four-wheel truck)

Loading and transport

Towed on 1-7/8" hitch coupling; moves between sites without a dedicated truck

Skid-mounted; shifts between any suitable flat deck truck with no fitment required

Typical applications

Potholing, trench excavation near services, drainage, residential driveways, tight access urban sites, planting in confined spaces

Potholing, trench excavation, drainage and stormwater, foundation exposure, larger urban sites, wet and clay-heavy ground conditions

Use Case	HydroMaster 1000	HydroMaster 2000
Potholing around buried utilities (pipes, cables, fibre)	Best fit (Recommended)	Best fit (Recommended)
Residential driveway and tight access urban sites	Best fit (Recommended)	Suitable
Companies with staff that don't have an H2 licence	Best fit (Recommended)	Not suitable
Sites where truck access is limited	Best fit (Recommended)	Suitable
Trench excavation near underground services	Best fit (Recommended)	Best fit (Recommended)
Drainage and stormwater work	Best fit (Recommended)	Best fit (Recommended)
Foundation exposure on small to medium sites	Best fit (Recommended)	Suitable
Foundation exposure on larger civil sites	Suitable	Best fit (Recommended)
Excavation in very wet or clay-heavy ground	Suitable	Best fit (Recommended)
Larger spoils volume per trip (less frequent emptying)	Not suitable	Best fit (Recommended)
Fire hydrant or camlock refill on site	Best fit (Recommended)	Best fit (Recommended)
Hire company fleet requiring no dedicated truck	Best fit (Recommended)	Suitable
Large infrastructure or civil projects	Possible, with limitations	Best fit (Recommended)
Urban environments with space constraints	Best fit (Recommended)	Suitable

Use Case

HydroMaster 1000

HydroMaster 2000

Potholing around buried utilities (pipes, cables, fibre)

Best fit (Recommended)

Residential driveway and tight access urban sites

Best fit (Recommended)

Suitable

Companies with staff that don't have an H2 licence

Best fit (Recommended)

Not suitable

Sites where truck access is limited

Best fit (Recommended)

Suitable

Trench excavation near underground services

Best fit (Recommended)

Drainage and stormwater work

Best fit (Recommended)

Foundation exposure on small to medium sites

Best fit (Recommended)

Suitable

Foundation exposure on larger civil sites

Suitable

Best fit (Recommended)

Excavation in very wet or clay-heavy ground

Suitable

Best fit (Recommended)

Larger spoils volume per trip (less frequent emptying)

Not suitable

Best fit (Recommended)

Fire hydrant or camlock refill on site

Best fit (Recommended)

Hire company fleet requiring no dedicated truck

Best fit (Recommended)

Suitable

Large infrastructure or civil projects

Possible, with limitations

Best fit (Recommended)

Urban environments with space constraints

Best fit (Recommended)

Suitable

Consideration	HydroMaster 2000	HydroMaster 1000	Generic imported hydrovac
Build quality	Purpose-built in New Zealand using premium components and a large diesel engine, in this case an Iveco engine	Purpose-built in New Zealand with liquid ring vacuum and hydraulic LatchMaster door for reliable, clean operation	Often built to a price point; varies by supplier and age of fleet
Suitability for NZ conditions	Designed for New Zealand civil and infrastructure worksites; skid format suits flat deck truck fleets	Designed for New Zealand contractors; trailer format suits both small fleets and large fleets requiring a compact unit for smaller jobs, and hire companies without dedicated trucks.	Generic specification not tailored to NZ towing rules or compact urban site access requirements
Vacuum performance	Liquid ring pump with full vacuum system; works in wet and clay-heavy ground; standpipe can be fully submerged	Full vacuum system with liquid ring pump; maintains suction in water and sludge without an air gap	Performance varies; air-based systems lose efficiency in very wet or clay-heavy ground conditions
Transport requirement	Flat deck or tipper truck with 8,000 kg payload capacity	Towable by any vehicle with 3,500 kg towing capacity; no H2 licence required	Typically requires a dedicated truck; H2 licence usually required
Site access	Fits class 2 four-wheel truck; suitable for compact urban sites and residential driveways	Towable trailer; highly manoeuvrable on tight access sites and residential driveways	Larger truck-mounted units struggle with tight access sites and residential driveways
Operator requirement	Single operator with remote control and E-Stop; suitable for most crews, but can also be operated by more than one person.	Single operator setup; LatchMaster door system allows safe dumping without assistance, but can also be operated by more than one person.	Often requires two operators; standard door systems carry risk of spillage on opening
After-sales support	NZ-based support, parts and servicing through Master Machinery	NZ-based support, parts and servicing through Master Machinery	Often limited or no local support; parts may need to be sourced internationally
Long-term cost	Higher upfront investment; lower cost per hour over the life of the machine with no expensive filters	Higher upfront investment; lower cost per hour with no expensive filters and simplified servicing	Similar upfront cost; higher risk of downtime and component failure over time, and generally more complex to operate than HydroMaster machines built for NZ contractors.
Customisation	Talk to our sales team to configure a HydroMaster to your requirements.	Talk to our sales team to configure a HydroMaster to your requirements.	Take-it-or-leave-it specification in most cases
Resale value	Strong resale due to brand recognition and proven build quality in NZ	Strong resale due to brand recognition and proven build quality in NZ	Weaker resale on generic imported units
Best for	Civil crews on flat deck trucks; larger urban infrastructure; projects needing bigger spoils capacity	Hire companies, small to medium contractors, owner-operators needing tight access and trailer mobility	Buyers prioritising the lowest possible upfront cost or one-off project requirements

Consideration

HydroMaster 2000

HydroMaster 1000

Generic imported hydrovac

Build quality

Purpose-built in New Zealand using premium components and a large diesel engine, in this case an Iveco engine

Purpose-built in New Zealand with liquid ring vacuum and hydraulic LatchMaster door for reliable, clean operation

Often built to a price point; varies by supplier and age of fleet

Suitability for NZ conditions

Designed for New Zealand civil and infrastructure worksites; skid format suits flat deck truck fleets

Designed for New Zealand contractors; trailer format suits both small fleets and large fleets requiring a compact unit for smaller jobs, and hire companies without dedicated trucks.

Generic specification not tailored to NZ towing rules or compact urban site access requirements

Vacuum performance

Liquid ring pump with full vacuum system; works in wet and clay-heavy ground; standpipe can be fully submerged

Full vacuum system with liquid ring pump; maintains suction in water and sludge without an air gap

Performance varies; air-based systems lose efficiency in very wet or clay-heavy ground conditions

Transport requirement

Flat deck or tipper truck with 8,000 kg payload capacity

Towable by any vehicle with 3,500 kg towing capacity; no H2 licence required

Typically requires a dedicated truck; H2 licence usually required

Site access

Fits class 2 four-wheel truck; suitable for compact urban sites and residential driveways

Towable trailer; highly manoeuvrable on tight access sites and residential driveways

Larger truck-mounted units struggle with tight access sites and residential driveways

Operator requirement

Single operator with remote control and E-Stop; suitable for most crews, but can also be operated by more than one person.

Single operator setup; LatchMaster door system allows safe dumping without assistance, but can also be operated by more than one person.

Often requires two operators; standard door systems carry risk of spillage on opening

After-sales support

NZ-based support, parts and servicing through Master Machinery

Often limited or no local support; parts may need to be sourced internationally

Long-term cost

Higher upfront investment; lower cost per hour over the life of the machine with no expensive filters

Higher upfront investment; lower cost per hour with no expensive filters and simplified servicing

Similar upfront cost; higher risk of downtime and component failure over time, and generally more complex to operate than HydroMaster machines built for NZ contractors.

Customisation

Talk to our sales team to configure a HydroMaster to your requirements.

Take-it-or-leave-it specification in most cases

Resale value

Strong resale due to brand recognition and proven build quality in NZ

Weaker resale on generic imported units

Best for

Civil crews on flat deck trucks; larger urban infrastructure; projects needing bigger spoils capacity

Hire companies, small to medium contractors, owner-operators needing tight access and trailer mobility

Buyers prioritising the lowest possible upfront cost or one-off project requirements

Built for You In Mind

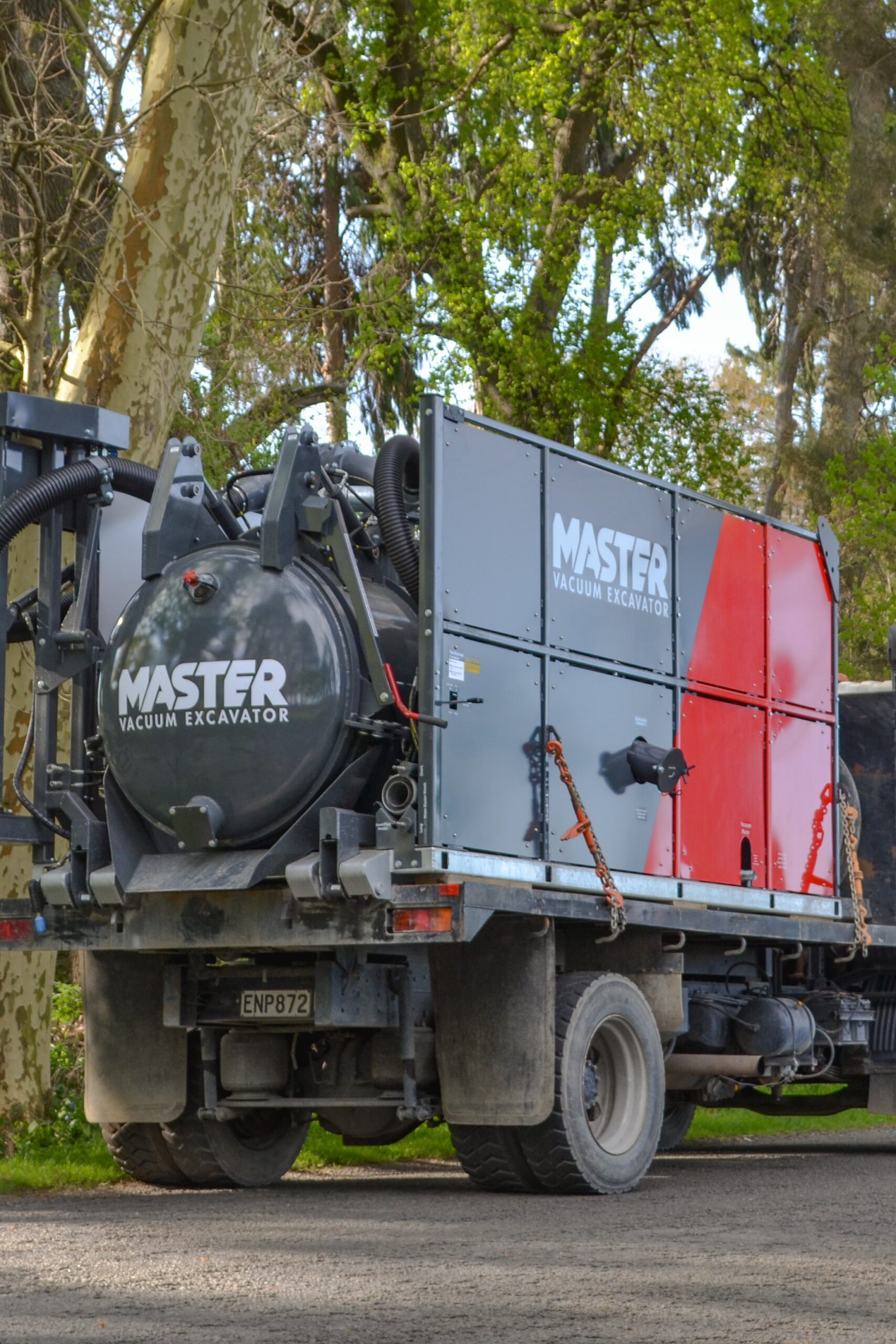

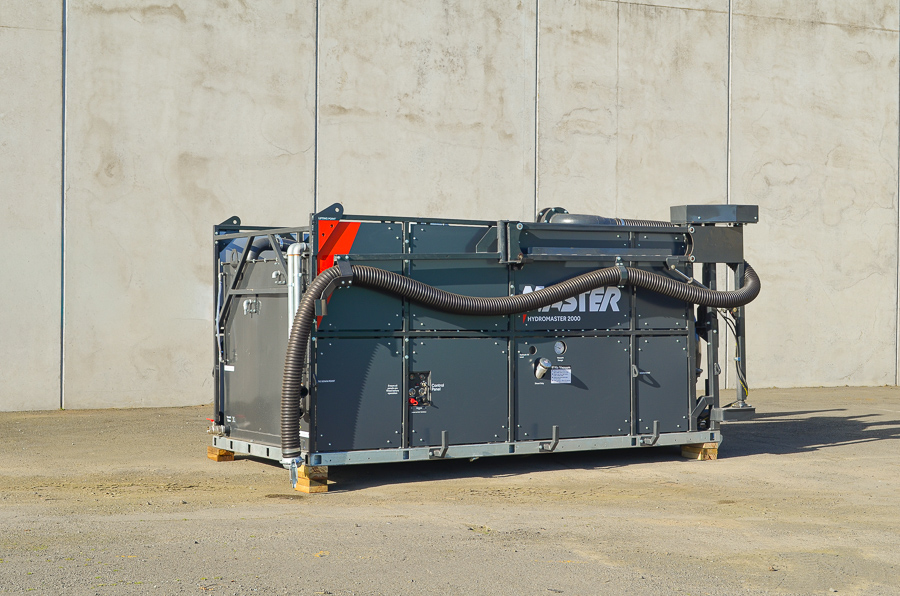

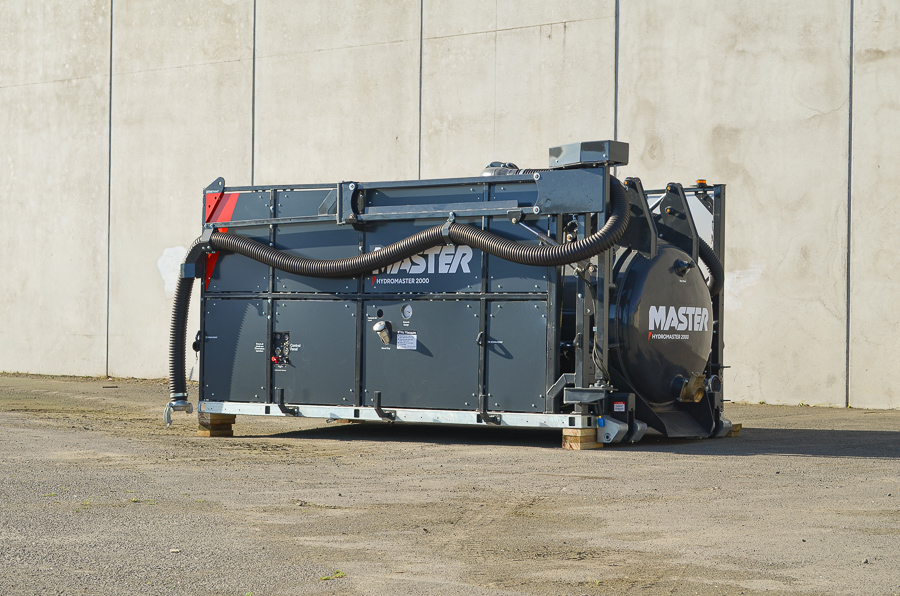

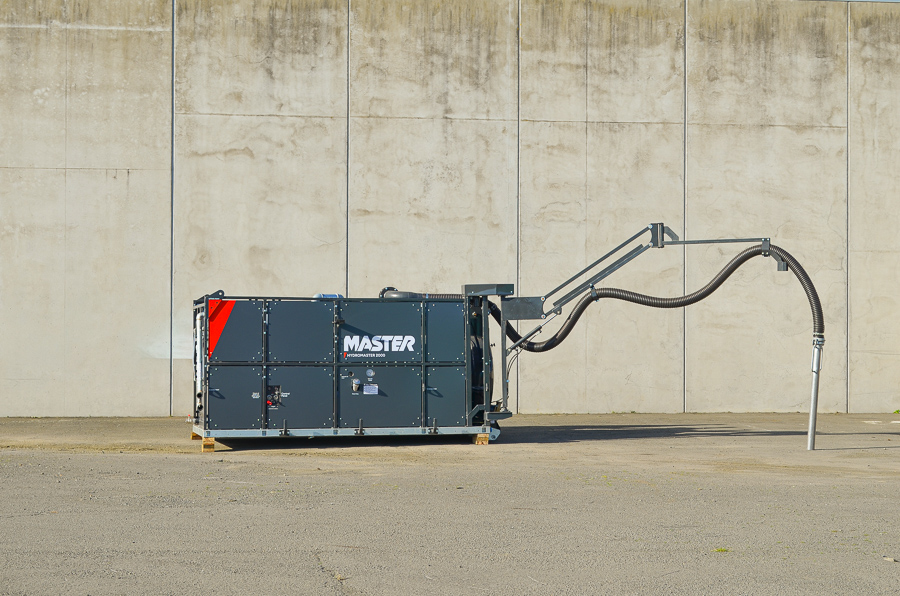

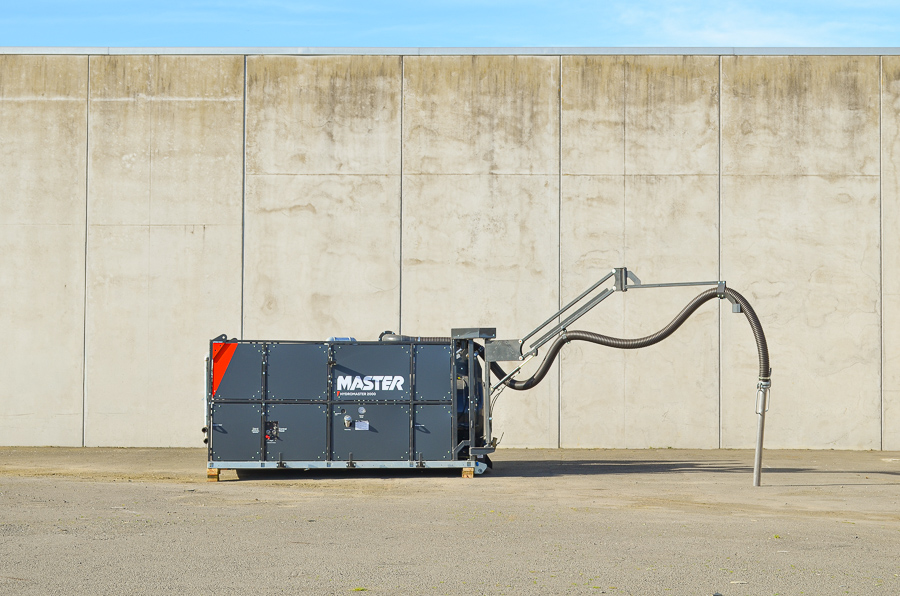

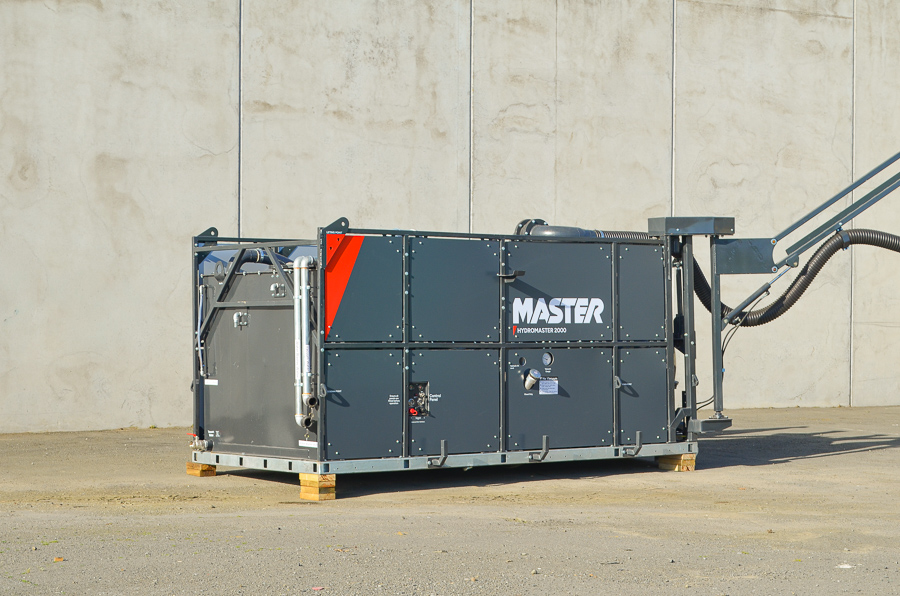

SKID FRAME

By not being built into a truck, the HydroMaster isn’t impacted or interfered with by the truck's controls.

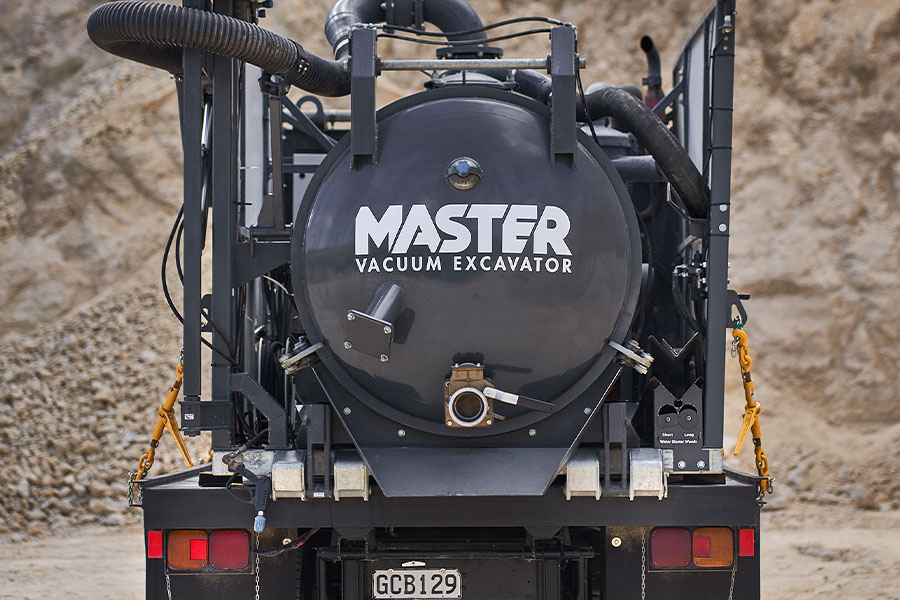

2000L TANK

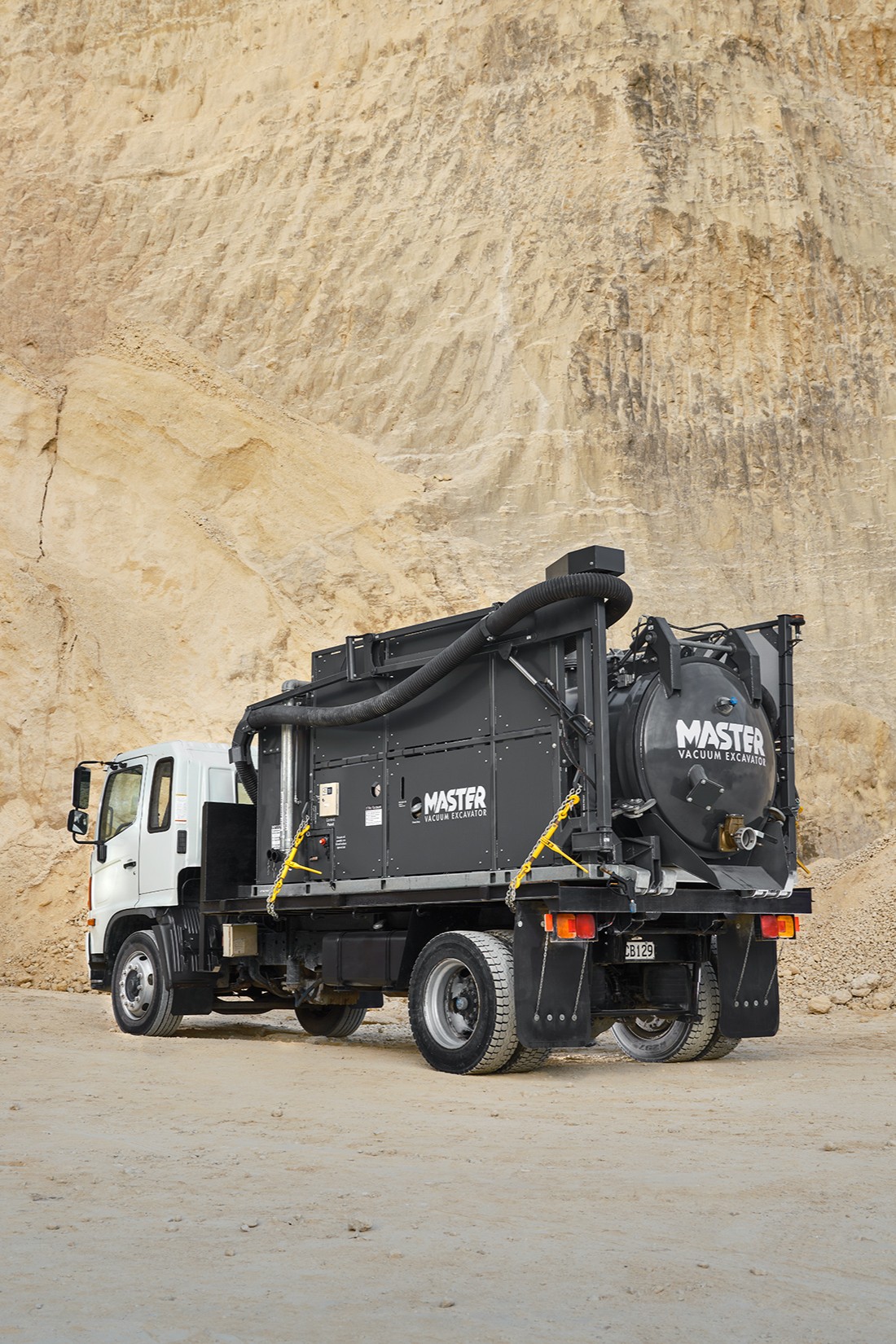

8000kg PAY LOAD

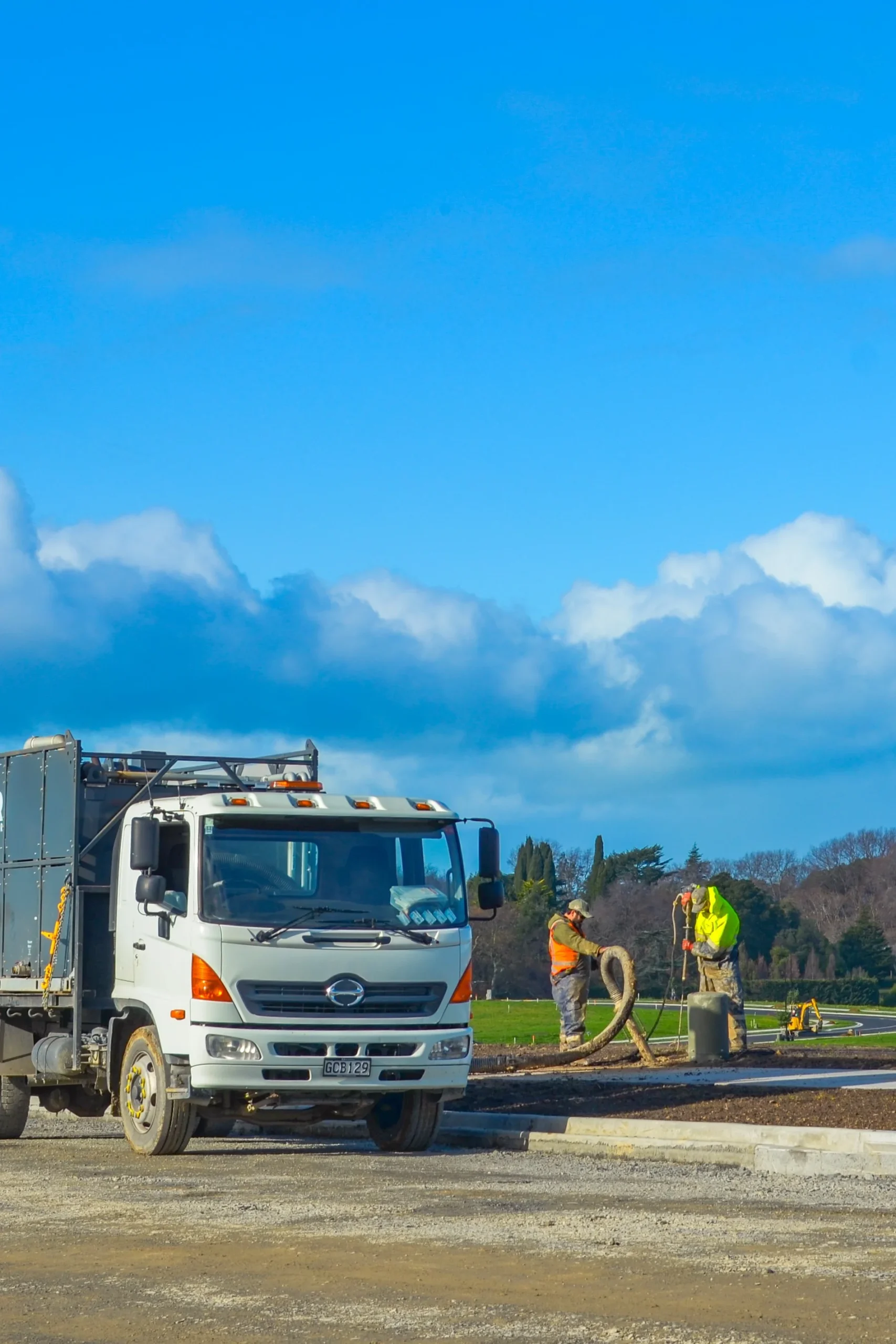

USER FRIENDLY

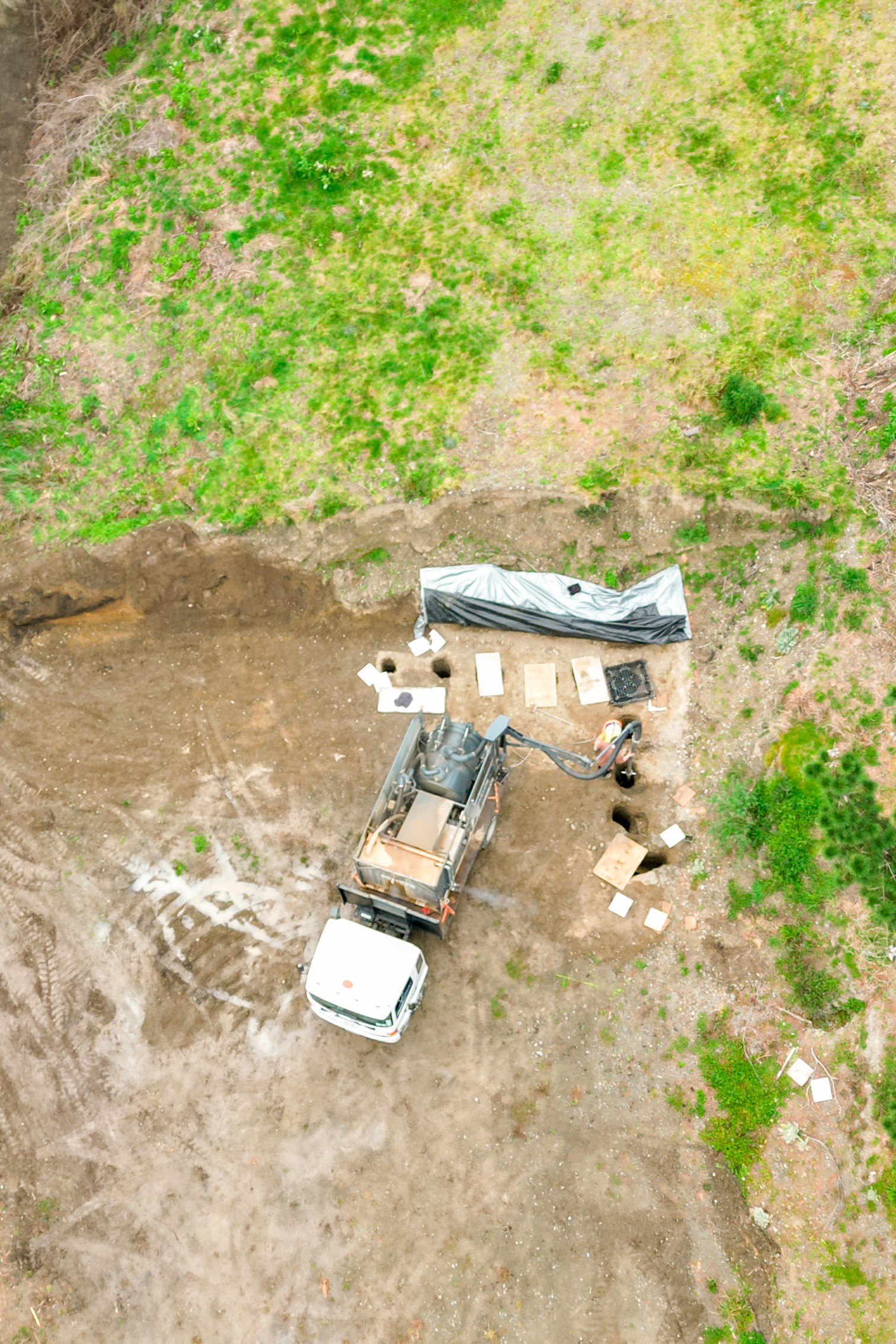

270 DEGREE BOOM ROTATION

5” SUCTION HOSE

FULL VACUUM SYSTEM

INDEPENDENT VACUUM ENGINE

EASILY MAINTAINED

What Can You Use the HydroMaster 2000 For?

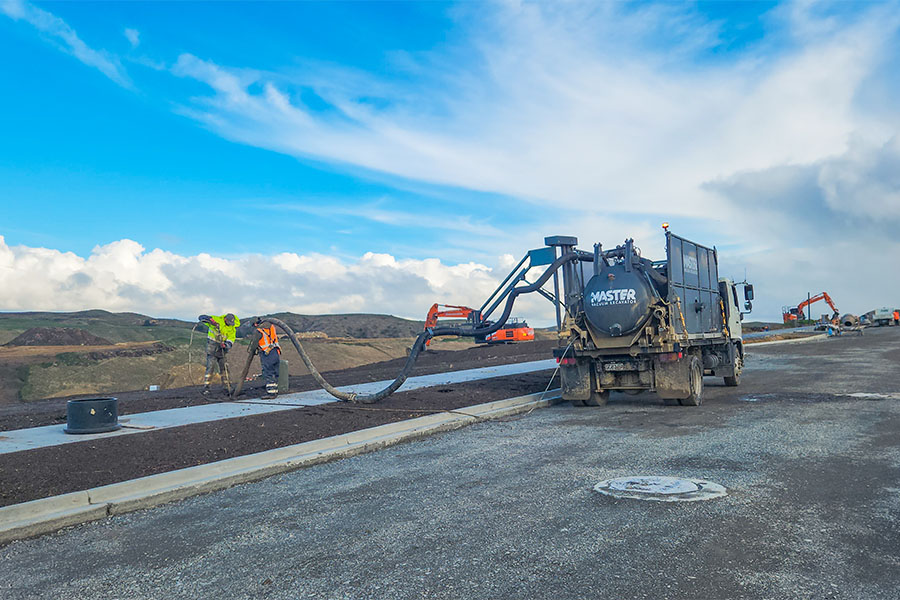

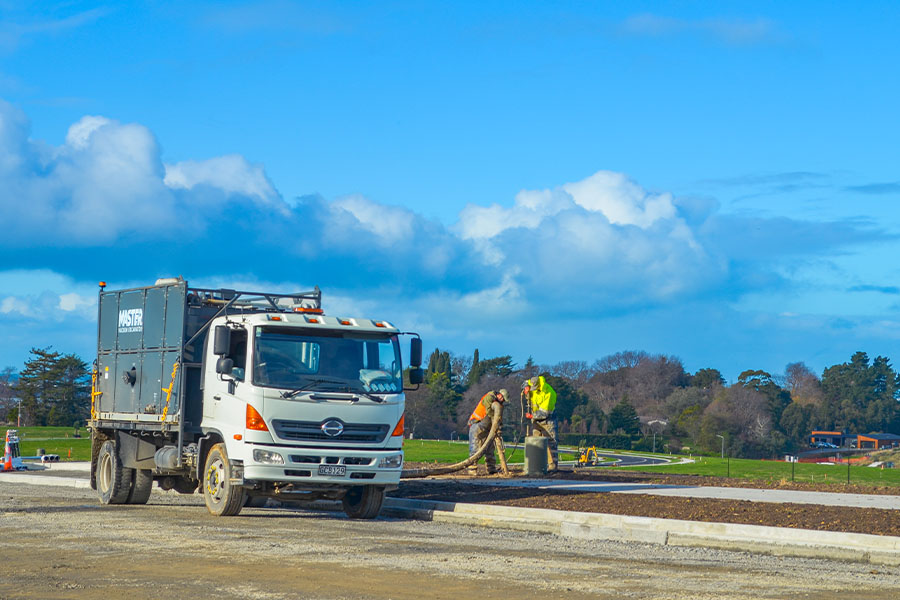

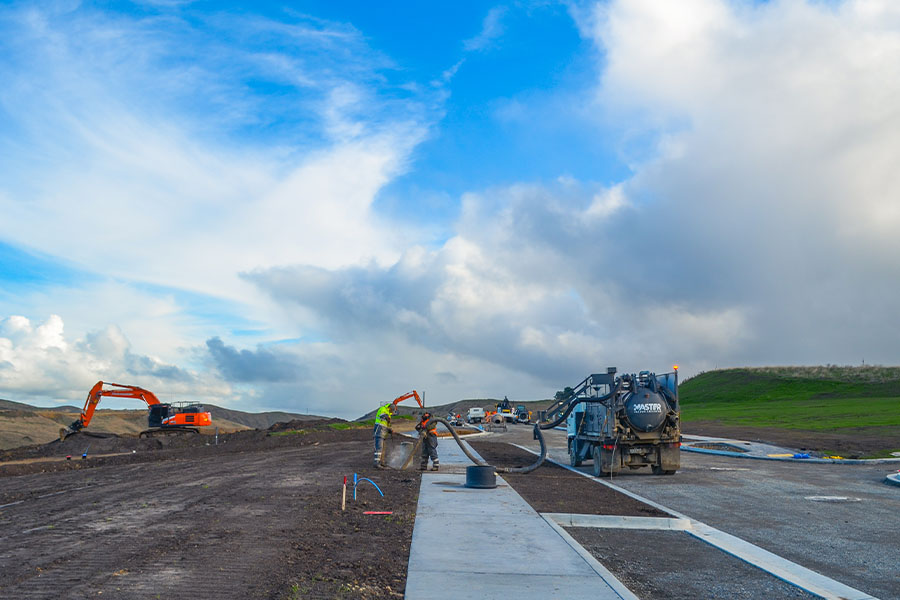

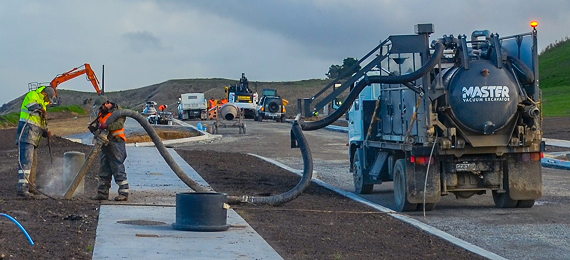

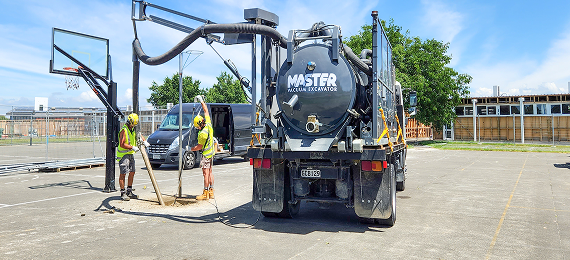

Potholing on High-Volume & Tight-Access Civil Projects

On large-scale subdivisions, urban roading, and infrastructure projects where multiple service locations must be confirmed before bulk earthworks begin, both speed and site access matter. The HydroMaster 2000 redefines this class by delivering full truck-level vacuum power in a highly agile, compact footprint. Its 2,000L spoil tank allows extended operation between dumps, while its smaller size lets it navigate narrow subdivision lanes and residential driveways that a massive 8x4 hydrovac truck couldn't reach, or would crack and damage in the process. Combined with a 270-degree remote-controlled boom and a liquid ring vacuum system that maintains heavy suction in wet, clay-heavy NZ conditions, a single operator can rapidly clear a sequence of potholes without constant truck repositioning or the risk of asset damage.

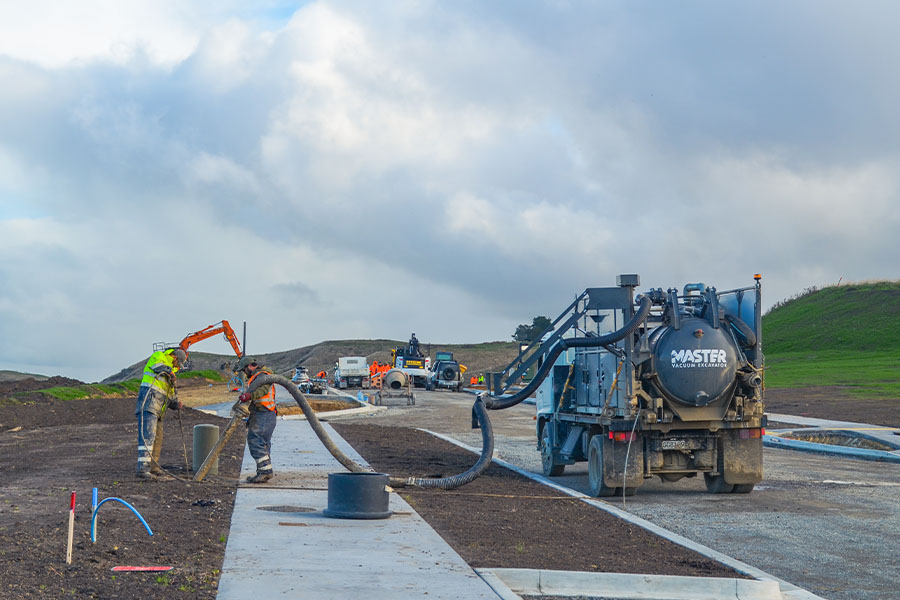

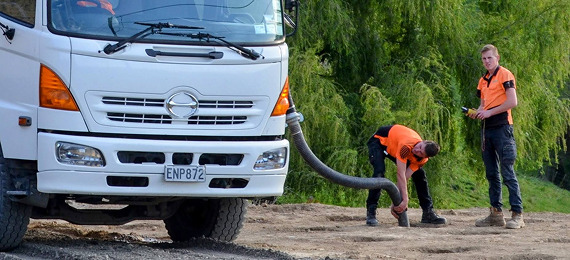

Trench Excavation Near Underground Services

Where new utility lines need to cross or run alongside existing buried infrastructure, the HydroMaster 2000 provides the safe excavation method that WorkSafe NZ guidance and utility owner requirements increasingly specify. Pressurised water breaks up the soil profile, and the vacuum extracts spoils to the sealed on-board tank. The result is a clean, accurate trench that drastically reduces the risk of damaging adjacent cables, pipes, or conduits.

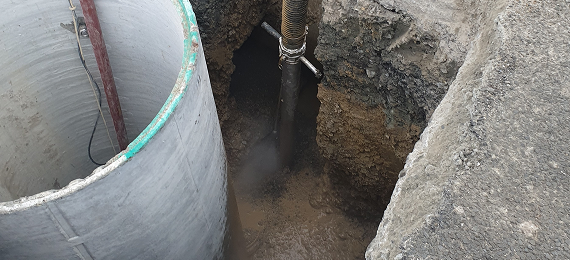

Drainage & Stormwater Infrastructure

Exposing existing drainage infrastructure for inspection, repair, or new connections is one of the most consistent applications for the HydroMaster 2000 on NZ civil contracts. The machine handles both the excavation phase and the extraction of standing water and spoils in a single operation. Contractors use it across Auckland, Wellington, and Christchurch urban stormwater upgrade projects where working near existing buried services makes mechanical excavation too risky.

Foundation Exposure & Structural Work

Exposing building foundations for inspection, underpinning, or connection work requires controlled excavation in confined spaces immediately adjacent to structural elements. The HydroMaster 2000 is ideal for these sensitive environments, providing precise soil removal without the destructive vibration or mechanical force of traditional digging that would be problematic next to existing footings or retaining structures. Because it is built as a compact truck-mounted unit, it can easily access tight inner-city building footprints and shared accessways where a full-sized hydrovac truck would be too bulky, heavy, or would risk damaging nearby surface assets.

Urban & Confined-Space Excavation

The HydroMaster 2000 is engineered to fit a compact Class 2 four-wheel truck with a minimum 8-tonne payload capacity. This configuration gives contractors full truck-class vacuum power on an agile, two-axle chassis, making it well suited to sites where a massive rigid truck would crush kerbs, crack residential driveways, or sink into soft ground. It is a strong solution for inner-city utility maintenance and residential street upgrades where large truck access is entirely blocked by tight streets or weight limits. On top of that, its modular skid-mounted design delivers real fleet flexibility: if your primary truck is down for service, you can transfer the unit to any backup Class 2 vehicle with the required payload, eliminating the costly downtime that stalls traditional truck-mounted hydrovacs.

Pole Hole & Foundation Excavation at Scale

Power and telecommunications contractors across NZ use the HydroMaster 2000 for pole hole excavation on line upgrade and new installation projects where multiple holes are required across a corridor. The 1,000L water tank supports extended on-site operation between refills, and the 2,000L spoil capacity means fewer dump runs compared to smaller trailer-mounted units. The turbo cutter nozzle cuts cleanly through compacted metal, topsoil, and clay.

Post-Event Flood & Emergency Recovery

When storm events result in flooded drainage systems, blocked culverts, or saturated ground conditions that make traditional excavation impractical, the HydroMaster 2000's full vacuum system operates without an air gap requirement. The standpipe can be completely submerged in water or slurry and continue extracting efficiently. Emergency and maintenance contractors use this capability for rapid drain clearance and infrastructure recovery work after significant weather events across NZ.

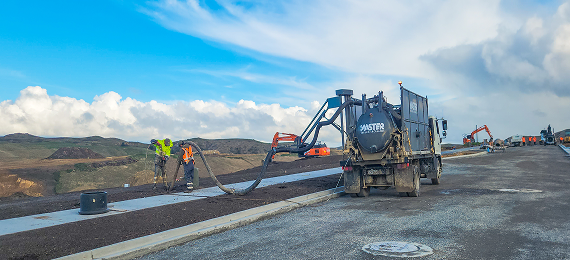

Subdivision & Residential Development

Safe excavation around existing services during new connections, upgrades, and subdivision development is one of the primary day-to-day applications for the HydroMaster 2000 on NZ construction sites. As NZ councils and utility owners increasingly require non-destructive methods for initial service exposure, having vacuum excavation capability on site has moved from a specialist option to a project delivery requirement for civil contractors working on new developments.
